Signature Elite Casement Windows From Gentek

Gentek casement and awning windows are expertly crafted to meet your every expectation for superior style and performance. The elegant, clean-line design and premium-quality build will change your focus from wanting the best window for your home – to having it.

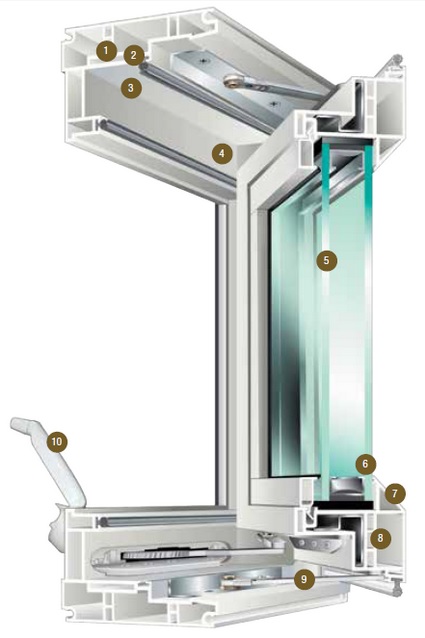

1. Multi-chambered sash and mainframe provide insulating dead-air spaces for increased thermal efficiency.
2. Highly durable vinyl mainframe and sashes won’t chip, peel, crack or warp. Premium vinyl construction is colored all the way through to ensure lasting beauty.
3. Step-down frame with double compression-type inner bulb seal helps block air and water infiltration.
4. Fusion-welded sash and mainframe provide added strength and rigidity. Extra-thick extrusions further fortify the window’s overall structural integrity.
5. Insulated glass unit1 with sealed air space between the panes of glass helps reduce the transfer of heat and cold for year-round energy conservation.
6. Intercept® Warm-Edge Spacer System saves energy by reducing the conduction of heat at the edge of the glass for superior thermal performance and longevity.
7. Beveled exterior sash design enhances the finished installation appearance for any architectural style. Stainless steel hardware delivers reliable, trouble-free hinge operation.
8. Metal-reinforced operating and locking attachment provides strong, dependable hardware performance.
9. Stainless steel hardware delivers reliable, trouble-free hinge operation.
10. Heavy-duty hardware ensures smooth, reliable operation of the windows and allows windows to be cleaned from inside the home – including larger window units.

Additional Features

• Low-profile, single-handle positive locking system provides easy operation.
• Color-coordinated hardware creates a clean, uniform appearance.
• Fully extruded overlap vent screen frame delivers convenient, worry-free ventilation.

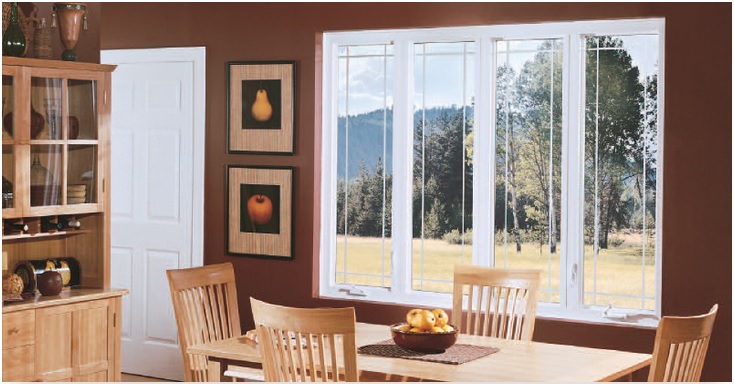

Gentek casement windows will add a striking finish to your home both inside and out. The slimline profile and generous glass exposure will infuse each room with the uplifting beauty of natural light. At the same time, the crisp, clean design and traditional charm will lend a distinctive touch of refinement to the exterior of your home.

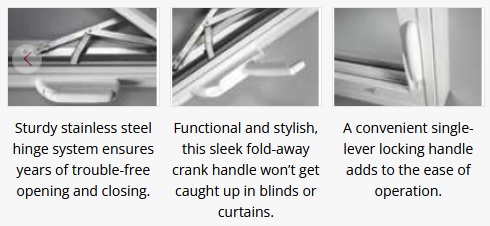

• Positive crank mechanism ensures easy operation when opening and closing the sash
• Beveled exterior sash and clean-line design create the appearance of a larger glass area
• Step-down frame with double compression-type inner bulb seal helps block out inclement weather
• Precision-engineered, stainless steel hinge system provides multi- directional ventilation and allows sash cleaning from inside the home
• Multi-point locking system achieves a tight fit and added comfort
• Heavy-duty vinyl mainframe and sashes are virtually maintenance-free
• Multiple lite configurations are available in a single mainframe
• Lifetime limited warranty – further assurance you have selected an excellent window for your home
• Optional glass breakage warranty

Insulated Glass Packages

Reducing energy loss is often the number one reason for purchasing replacement windows. Windows are roughly 80% glass, so it’s important to choose the ideal glass system for your home and climate. Upgrading to a high-performance Low-E (low-emissivity) insulated glass package may help further increase year-round energy savings.

BarrierXP Insulated Glass Packages

BarrierXP combines multi-layered, low-emissivity (Low-E) glass, argon gas and the Intercept Warm-Edge Spacer System.

• Proven to be far more energy efficient than ordinary clear glass units.
• Compare the glass package performance:
  • The lower the U-Factor, the less energy you’ll need to heat your home
  • The lower the Solar Heat Gain Coefficient (SHGC), the more you’ll conserve on air-conditioning

Optimize your Energy Efficency

Many Barrier XP insualted glass packages meet the latest ENERGY STAR® 7.0 requirements, including our innovative BarrierXP PriME glass package, which meets ENERGY STAR Most-Efficient criteria in all climate zones. Consult your window professional for the optimal glass package required for your home and climate zone.

BarrierXP PriME

Gentek windows are now available with our innovattive BarrierXP PriME glass package.

• BarrierXP PriME , meets ENERGY STAR Most Energy Efficient in all climate zones
• Provides a powerful energy-saving shield with three panes of glass, three surfaces of Low-E (low-emissivity) technology, two spaces of argon gas fill and two warm-edge spacer systems
  • BarrierXP PriME uses argon between the panes of glass, a more cost effective gas compared to krypton.
  • Argon Gas makes BarrierXP PriME an excellent choice that may help your windows qualify for tax credits.

BarrierXP PriME is available for Signature Elite and 80 Series windows and Sanctuary sliding patio doors² – see your Gentek Sales Representative for specific product offering.

BarrierXP

BarrierXP combines multi-layer low-emissivity (Low-E) glass and argon gas, along with the Intercept® Warm-Edge Spacer System, to achieve outstanding energy savings.

The Intercept Warm-Edge Spacer System features a unique, one-piece metal alloy, U-channel design that creates a powerful thermal barrier to reduce conducted heat loss through the window. Its sealed, one-piece construction makes Intercept spacers stronger and better at retaining insulating gas than many conventional designs.

BarrierXP ThermD

BarrierXP ThermD which is U-shaped in its design, supports seal longevity and gas retention by allowing the glass and sealant to move with the normal expansion and contraction of the window due to temperature changes. The flexibity eliminates the stress on the sealant and spacer by allowing the components to work with cohesive structural integrity.

BarrierXPsc

BarrierXPsc provides exceptional solar control and thermal insulation without compromising the view. This innovative glass system combines Low-E glass with a third metallic, vacuum-deposition layer to selectively filter out the sun's penetrating heat and destructive UV rays. The third

layer of protection makes BarrierXPsc one of the most effective glass systems for achieving solar control, outperforming many soft-coat Low-E glass products that typically feature just two layers of Low-E.

BarrierXPsc Select

BarrierXPs Select is a design distinction you won’t see, but will clearly appreciate. Rather than using a dark tint or extra-thick glass like many solar control products, it incorporates multiple, virtually imperceptible silver layers that counteract the effects of the solar spectrum, yet allow natural visible light into your home. Your windows will have a beautiful appearance that’s also exceptionally effective in reducing solar glare.

BarrierXP TK2

BarrierXPTK2 features triple-pane glass with the Intercept Warm-Edge Spacer System, two surfaces of low-emissivity (Low-E) glass and two air spaces filled with krypton gas. Combined with a high-performance window construction and insulating components, this glass system creates a powerful thermal shield against energy loss and helps reduce noise infiltration.

BarrierXP TK2 Plus

BarrierXP TK2 Plus glass package features triple-pane glass with the Warm-Edge Structural Foam Spacer System, two surfaces of low-emissivity (Low-E) glass and two air spaces filled with krypton gas. Combined with a high-performance window construction and insulating components, this glass system creates a powerful thermal shield against energy loss and helps reduce noise infiltration.

Many BarrierXP insulated glass packages meet the latest ENERGY STAR® requirements. Consult your window professional for the energy-efficient glass packages available for your home and climate zone.

Precision-Engineered Spacer Systems

The spacer system in a window unit works double- time: it improves the energy efficiency of the window and stabilizes the panes of glass. BarrierXP PriME offers two high-performance spacer options.

Built For Your Climate

The ENERGY STAR label certifies that the window is a positive choice for energy efficiency, fuel savings and the environment. ENERGY STAR is a government-backed voluntary partnership program sponsored by the U.S. Environmental Protection Agency and the U.S. Department of Energy to help consumers recognize energy-efficient products. It’s good for you and good for the environment!

Easy Color-Match System

Our Color Clear Through® system makes it easy to find the perfect color match for your exterior design. This special collection of colors ensures that all Gentek products – siding, soffit, fascia, trim, and rainware – will beautifully match throughout our vinyl, aluminum and steel product lines.

*Extruded solid color.
** White Woodgrain is available with a taupe base only.

We recommend you make final color selections using actual product samples. All colors may not be available in all markets.

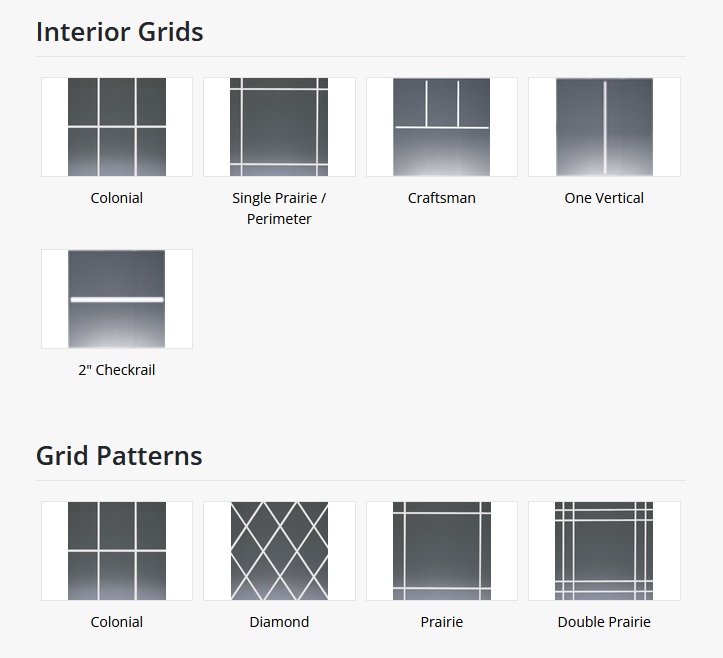

Note for patio door: Prairie and Perimeter grid patterns with an unsupported grid span of 40″ or greater are subject to a short stabilizer grid to maintain grid integrity. Colors may be slightly different from their appearance in this brochure. Make final color selections using actual product samples. All specifications and designs subject to change without notice. Due to product changes, improvements and other factors, Gentek reserves the right to change or delete information contained herein without prior notice. WARNING: Screen will not stop child from falling out window or patio door. Keep child away from open window or door. The only purpose of the screen is to reduce the infiltration of insects.
